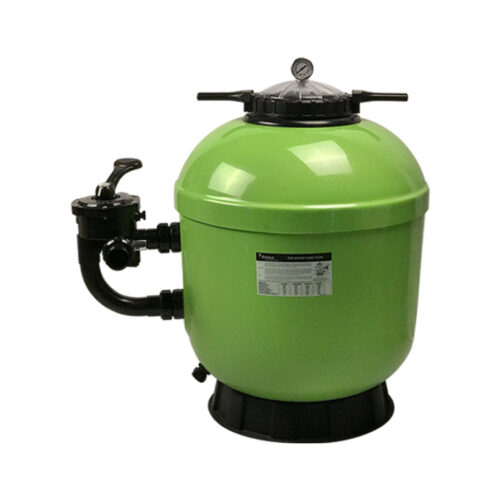

POOL SAND FILTER – SMG SIDE – PM 161

Emaux Gelcoat Filters are produced by skilled workers and experienced engineers in modern manufacturing facilities. Each product is subject to a 100% inspection at every production stage and a strict hydrostatic pressure test. In order to achieve their best performance, 20,000 cycle tests were conducted to determine the specifications of the filters.

SMG Filter is equipped with :
1. 6-way multiport valve (1.5”MPV03, 2”MPV04)
2. universal standard of union connection
3. pressure gauge
4. ABS lateral system
5. piping kit

Tank Material
Gelcoat Fiberglass
Max Operating Pressure
36 psi / 2.5 bar
43°C (109°F)
Suggested Size of Media 0.5-0.8mm

Advantages
1. Non corrosive gelcoat fiberglass tank with smooth finish
2. Can be produced in different colors for choice of appearance
3. SMG: Curved valve connecting elbow reduces head loss
4. SMG: Transparent lid provides clear view of filter media, and an air release valve allows trapped air to be evacuated
