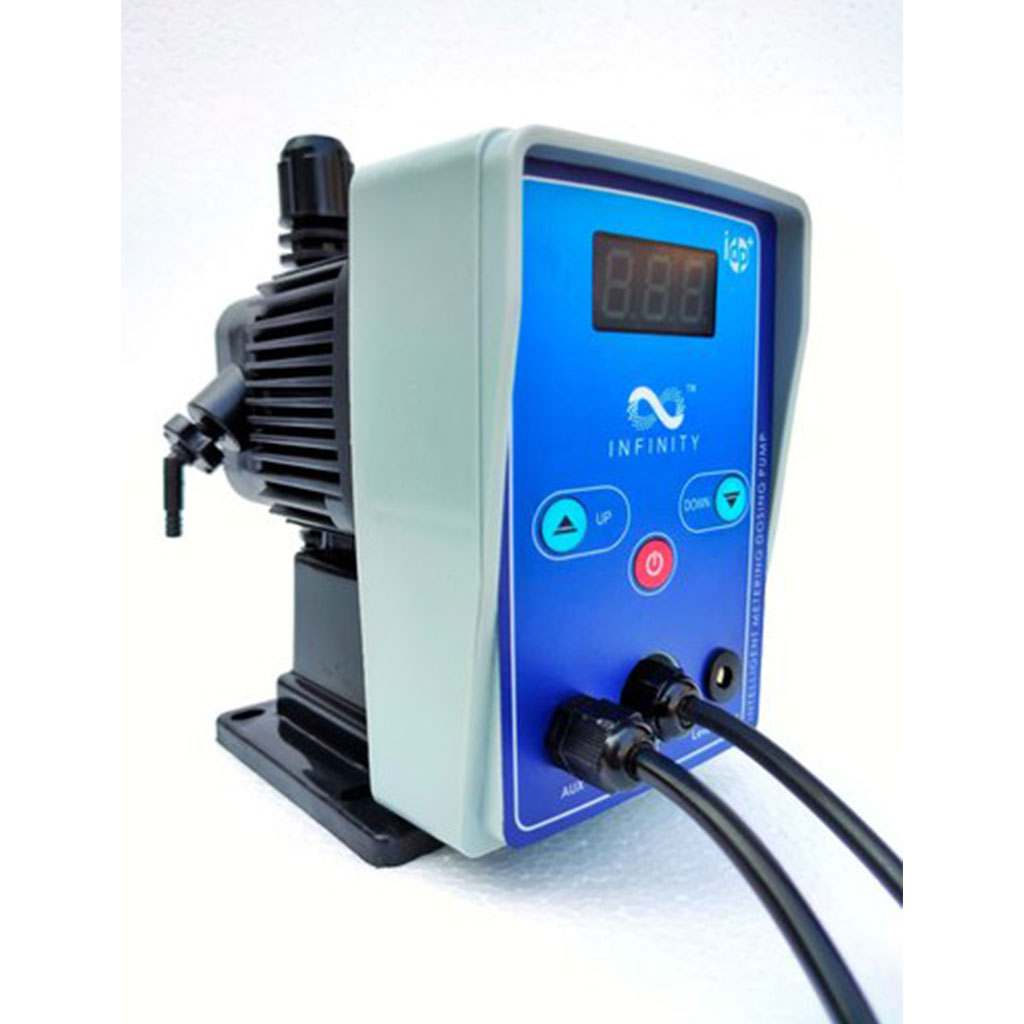

CHEMICAL DOSING PUMP – DIGITAL – PM 131

INTELLIGENT CHEMICAL DOSING PUMP To dose low and average concentrated pH solution.
IDP + is advanced series than IDP because of high accuracy digital display with level sensor and AUX output RLY for further automation.

Dosing Capacity 0.2-27.5 LPH
Max. Operating Pressure 7 Bar
Max. Stoke per min. 400
Max. power consumption 30W

Zero leakage design
High strength and corrosion resistance material used
World-class next-generation CE & RoHS certified dosing pump
PTFE flexible diaphragm and Valve seat ensure long life under most demanding application
Wetted parts suitable for most aggressive chemicals
Wide operating voltage range (180-280V) auto voltage compensation to ensure dosing consistency
Epoxy coated microprocessor-based PCB 5 Times more reliable.
Pumps tested at pressure of 9 bars back pressure
Glass ball double ball NRV’s ensure long life
Low-level tripping & dry run protection facility in IDP+ series
Aux output RLY for further automation
Inbuilt auto rest fuse & air release valve (ARV)
LED display, intuitive and convenient to use
